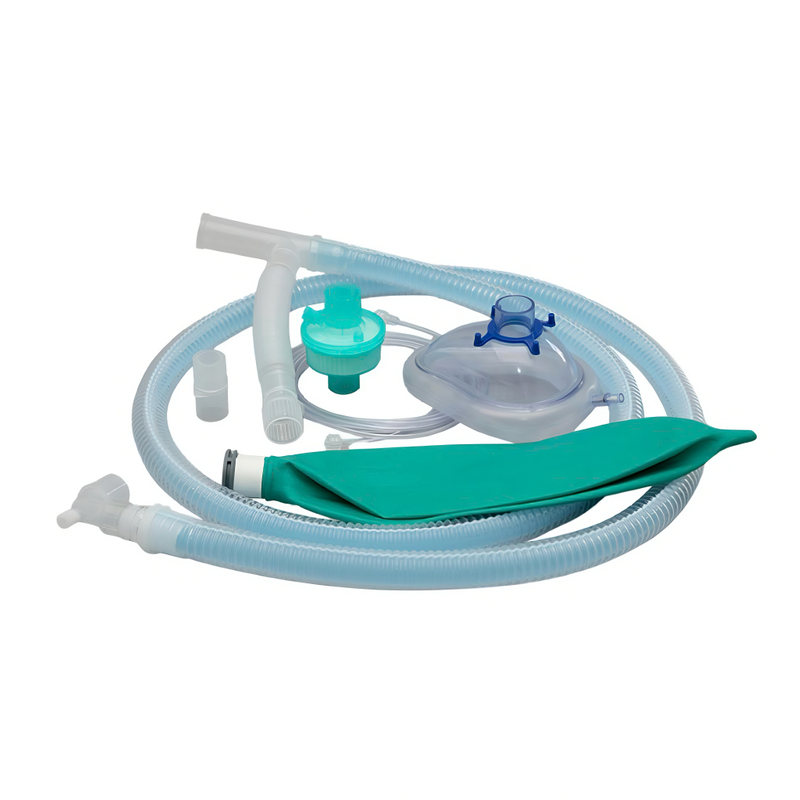

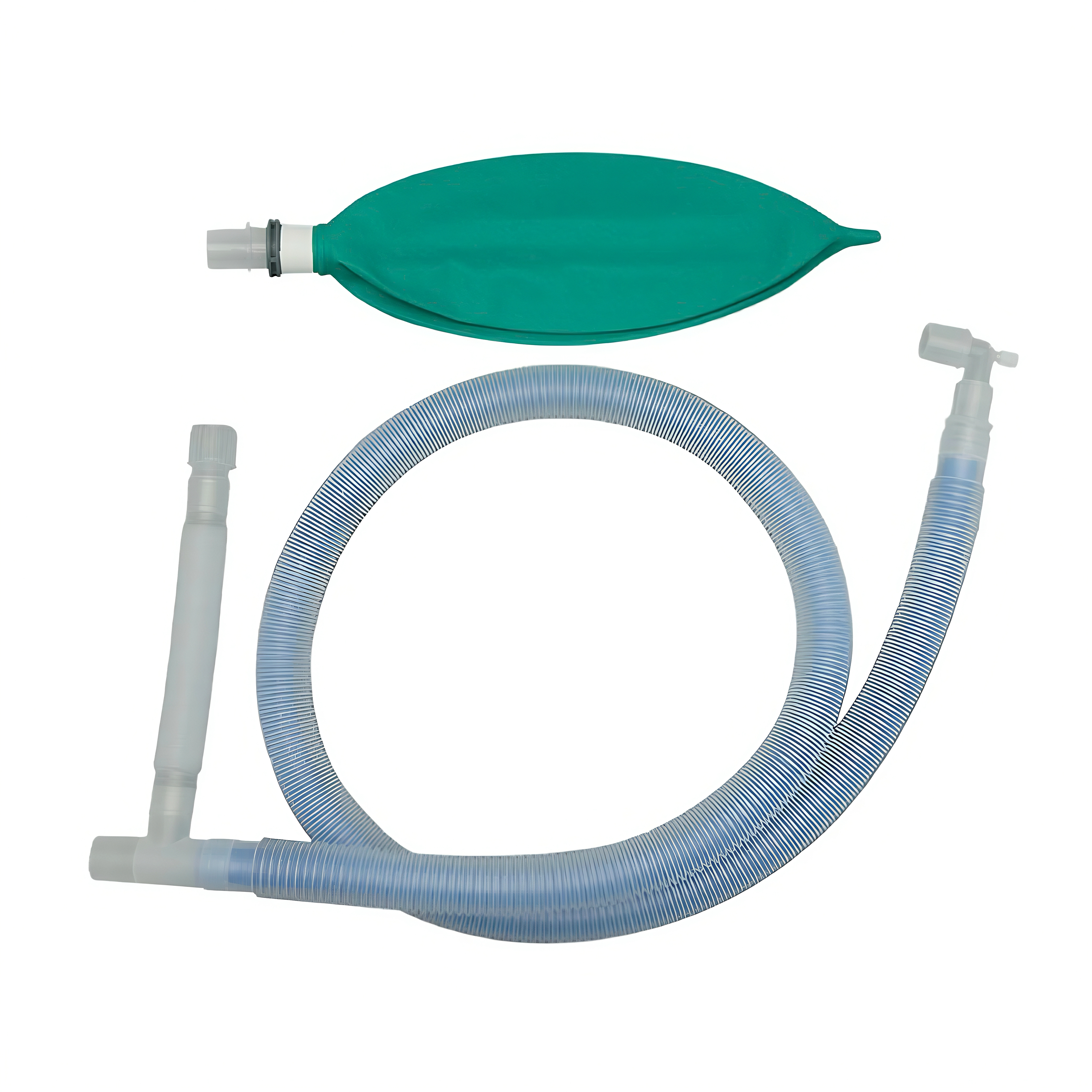

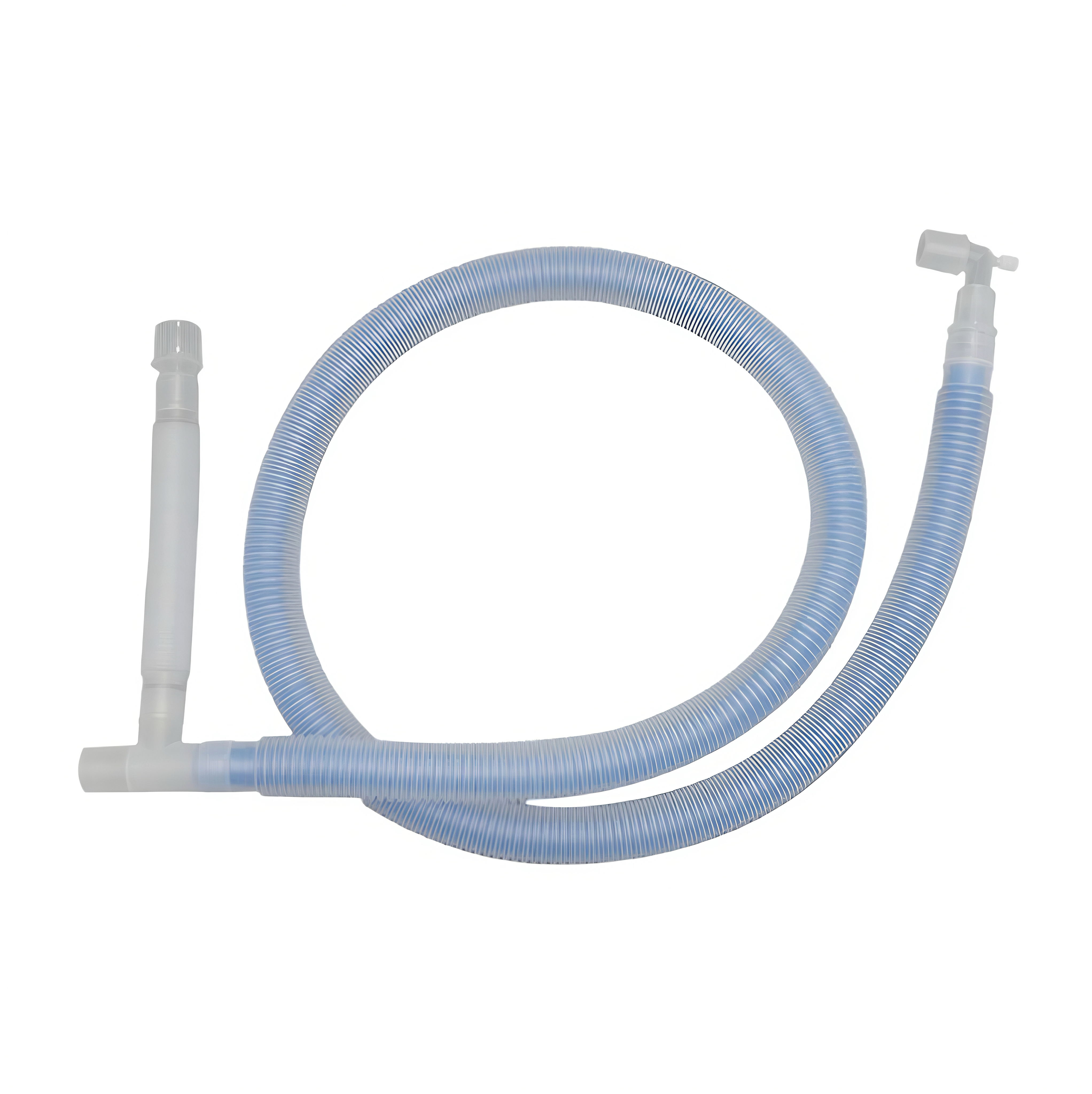

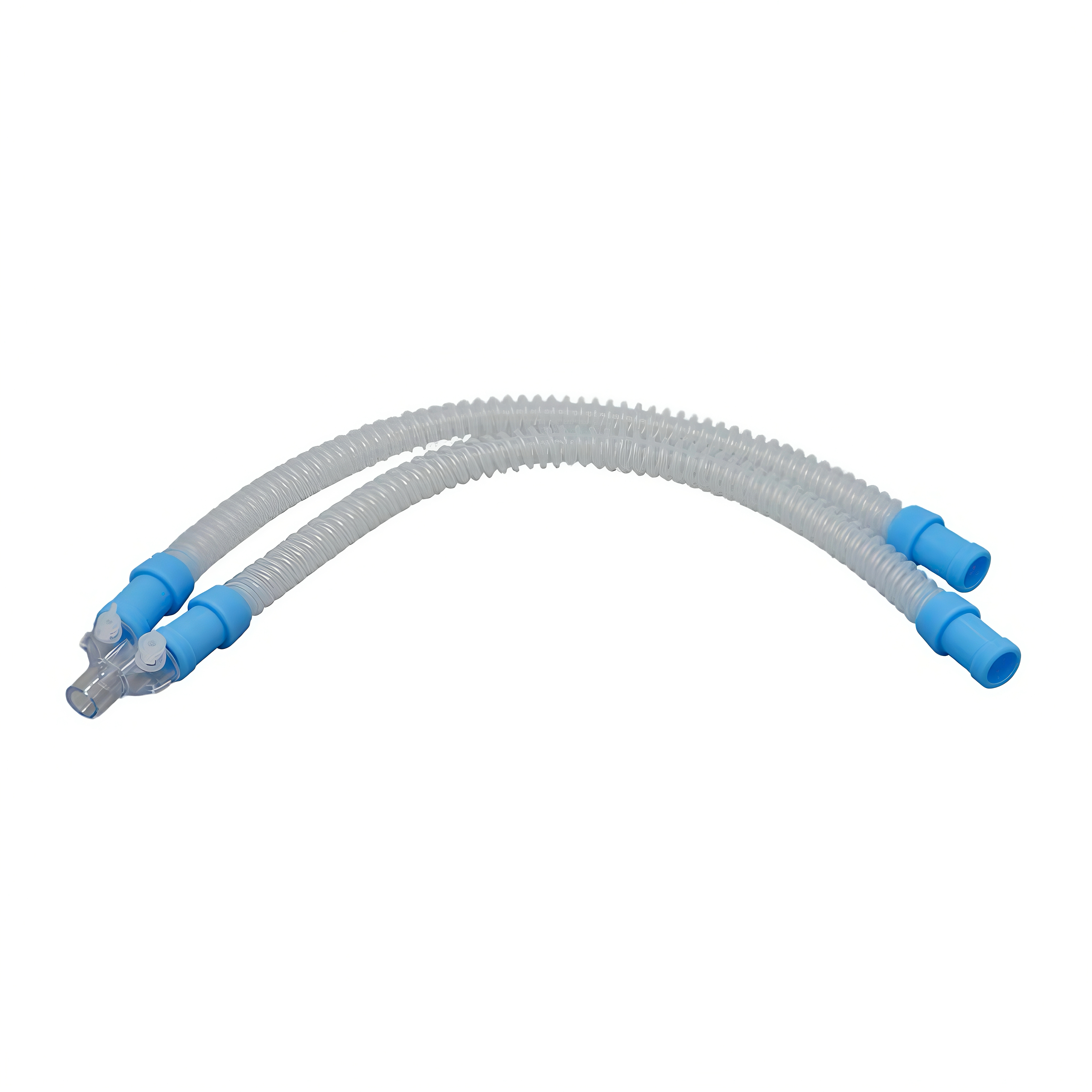

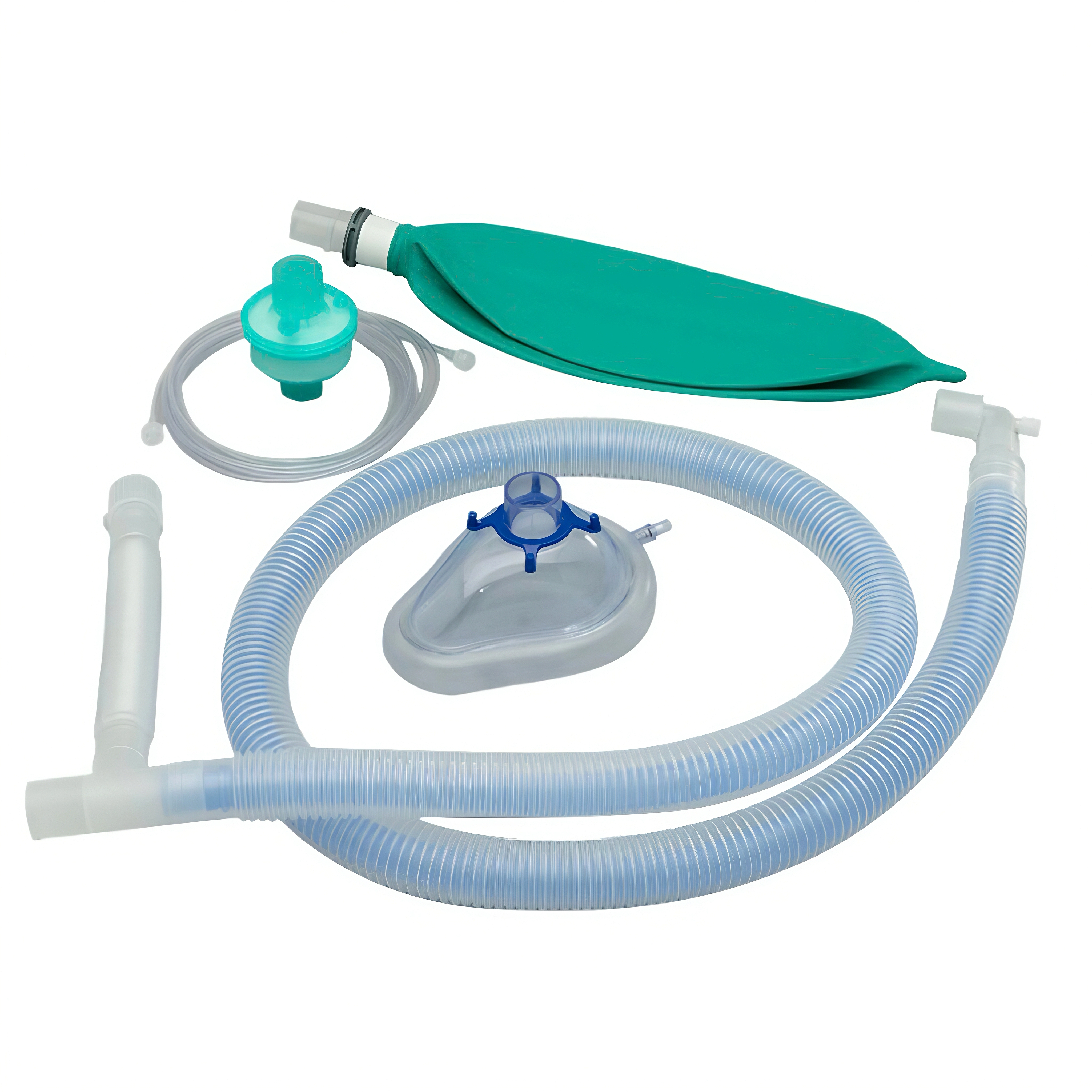

Description: The product is to transfer the medical air between the patient and machine for anesthesiology, ICU and emergency room.
Model: Expandable Circuit
Corrugated Circuit
Smoothbore Circuit
Coaxial Circuit
Catheter mount
Directions for use: 1. Open the package by tearing off from the bottom edge V-shape opening, DO NOT use scissors or cutter to open the package to avoid product damage
2. Before connecting the product to patient, securely attach all connections by using a twisting action to ensure a leak free and tight fit
3. Following the machine instruction to test the product, make sure the product is compatible with the machine used and confirm that the product has no leakage and occlusion
4. Make sure the ports of the product such as gas sampling port, pressure port and temperature port are closed when not connected to the monitoring line
5. Patient should be monitored constantly whenever the product is in use
6. Please read the instruction before use
| Product Name | Disposable Medical Expandable/Corrugated/Smoothbore/Coaxial Anesthesia Ventilator Breathing Circuits |
| Material | EVA+PP+ABS |
| Type | Adult, Pediatric and Infant |
| Length | 0.8m, 1m, 1.2m, 1.5m, 1.6m, 1.8m, 2.4m, 3meters, etc |
| Packing Methods: | Paper Plastic Pouch/PC; PE pouch/PC |
| Outer Package: | 67x42x43cm for CTN Size |
| Brand: | OEM as per customers' request |
| Sterilization: | Ethylene Oxide Sterilization or non sterile |
