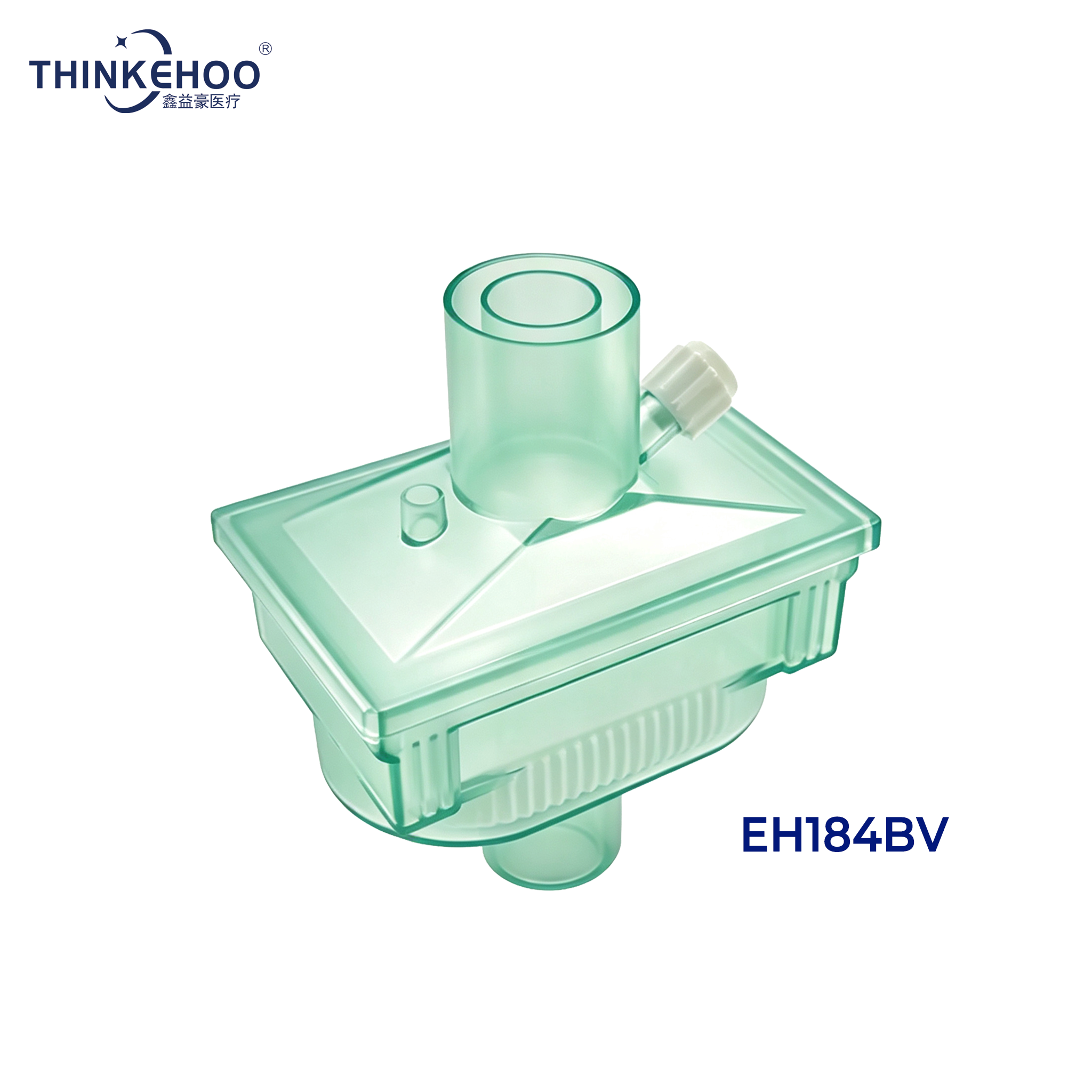

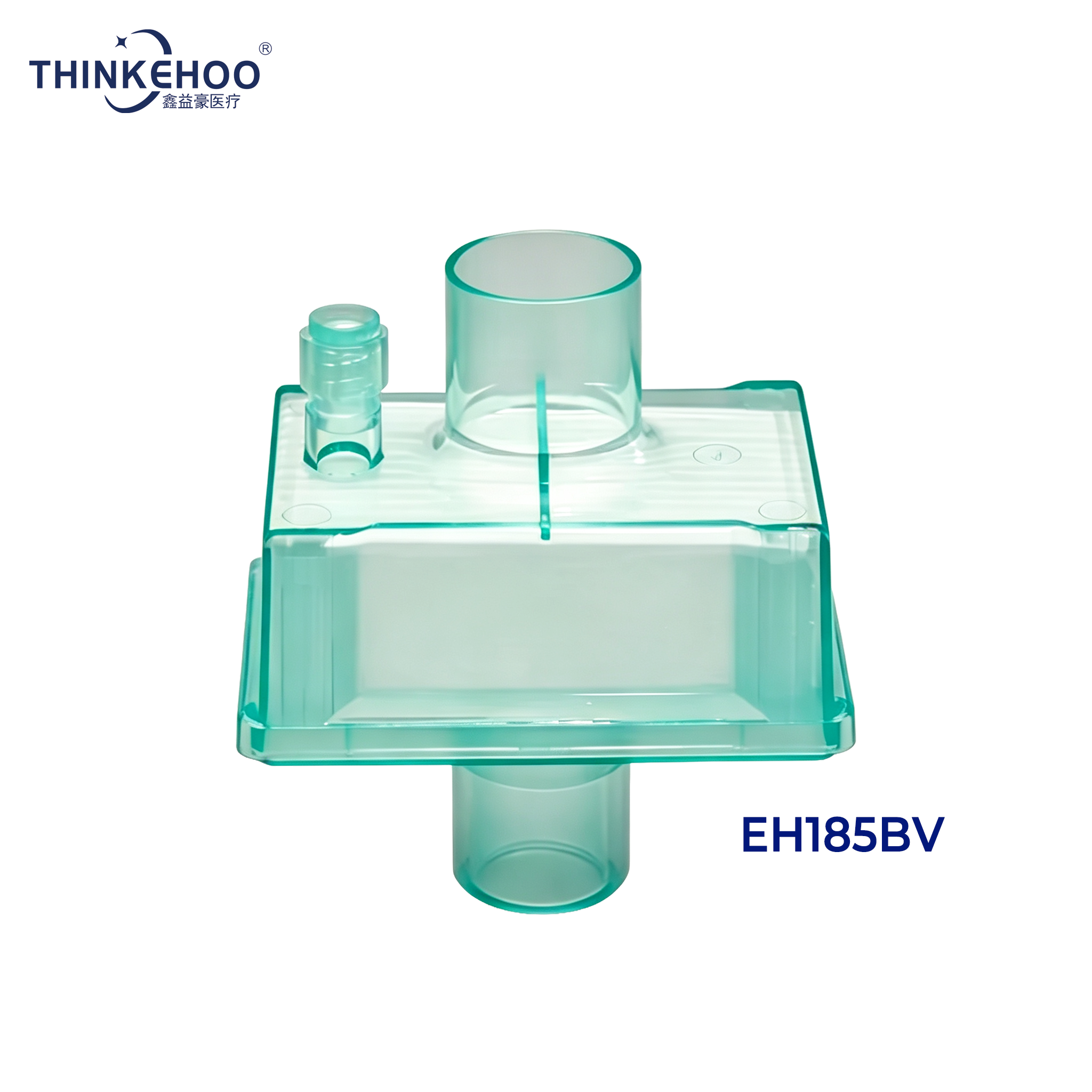

This disposable HEPA breathing filter is designed for use in ventilator and anesthesia breathing circuits to help reduce the passage of airborne particles and microorganisms between the patient and the breathing system. It offers 99.97% filtration efficiency at 0.3 μm with low airflow resistance, and is available with standard 22 mm and 15 mm connectors for adult and pediatric circuits.

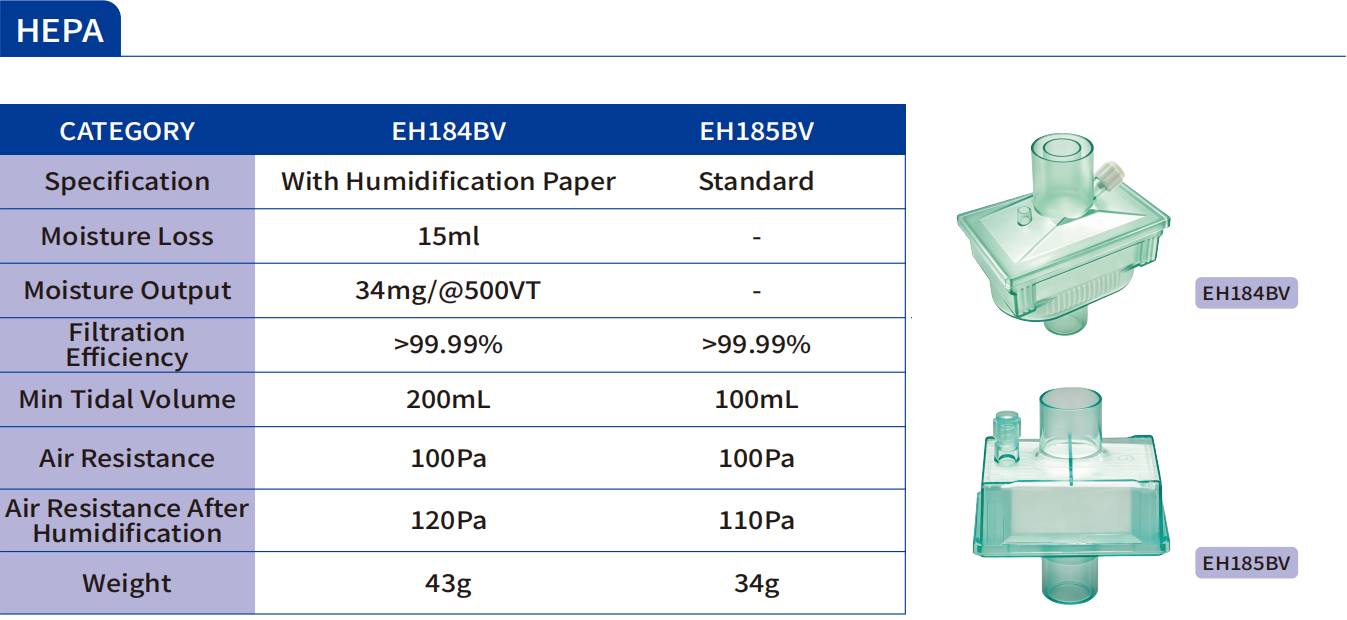

Filtration performance: 99.97% efficiency at 0.3 μm particle size. The filter is also tested for bacterial and viral filtration efficiency in accordance with EN ISO 23328-1.
Key Features:
99.97% filtration efficiency at 0.3 μm particle size
High efficiency pleated filter membrane
Low airflow resistance to minimise impact on ventilation
Standard 22 mm and 15 mm connectors

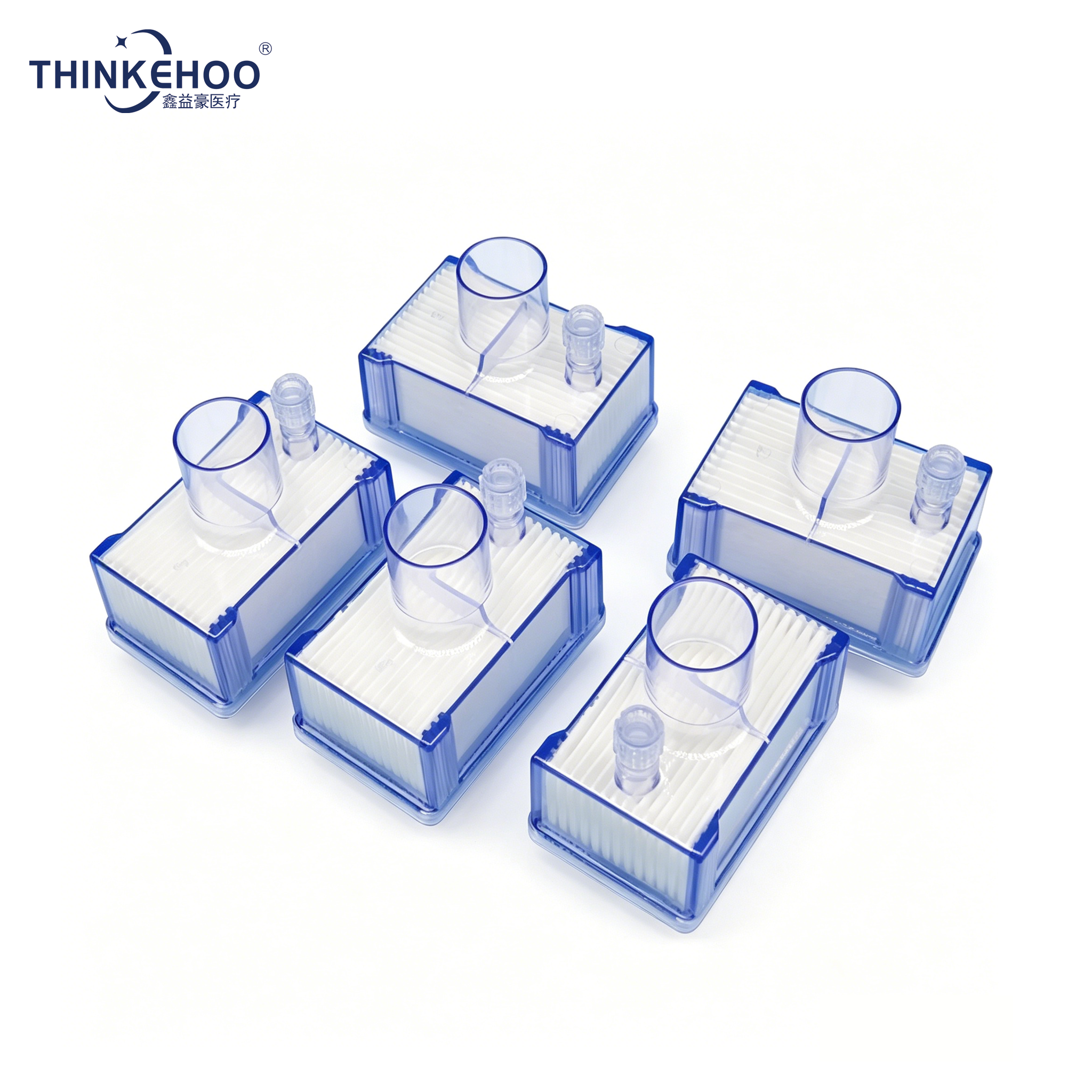

Available in adult and pediatric sizes
Single-use, individually packed
Applications:
Mechanical ventilation in ICU
Anesthesia breathing circuits
Ventilation of immunocompromised or infectious patients
Protection of ventilator and anesthesia equipment from contamination
Important Notes:
Single use only. Do not reuse or resterilize.
Do not use if the package is damaged or opened.
Do not use the filter with a nebulizer; medication may be trapped by the filter and reduce its performance.
Replace the filter according to your facility's infection control policy, or if it becomes wet, soiled or blocked.
Check the connectors are securely fitted before use.
This device is a breathing system filter. It does not provide ventilatory support.
