Feature
- Continuous Breathing
Simultaneously ventilation
- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.
- Y Connector Type
ET "Y" neonatal and pediatric care adapters are available for 5, 6, 7, 8, French sizes closed suction catheter.

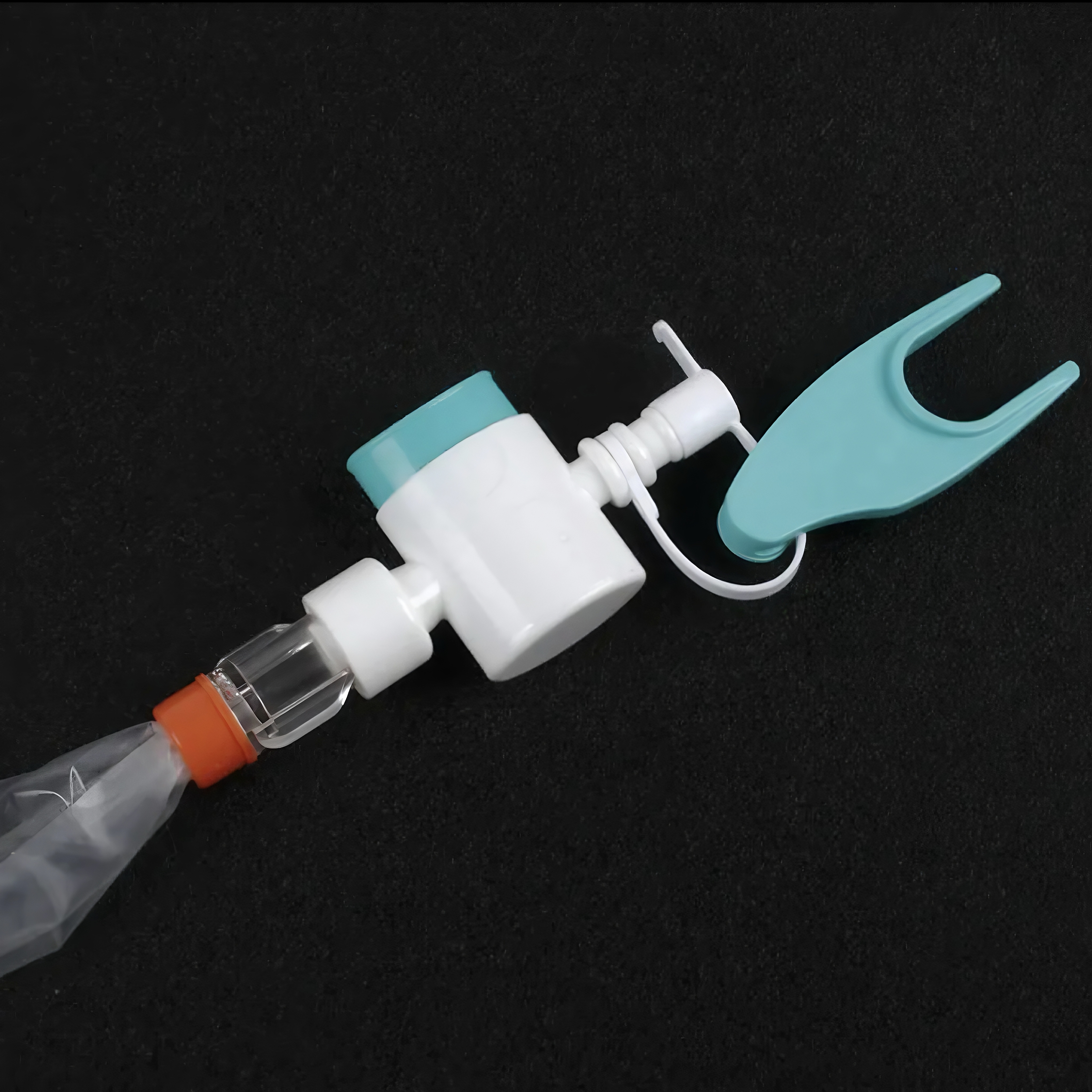

- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions
- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available
- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

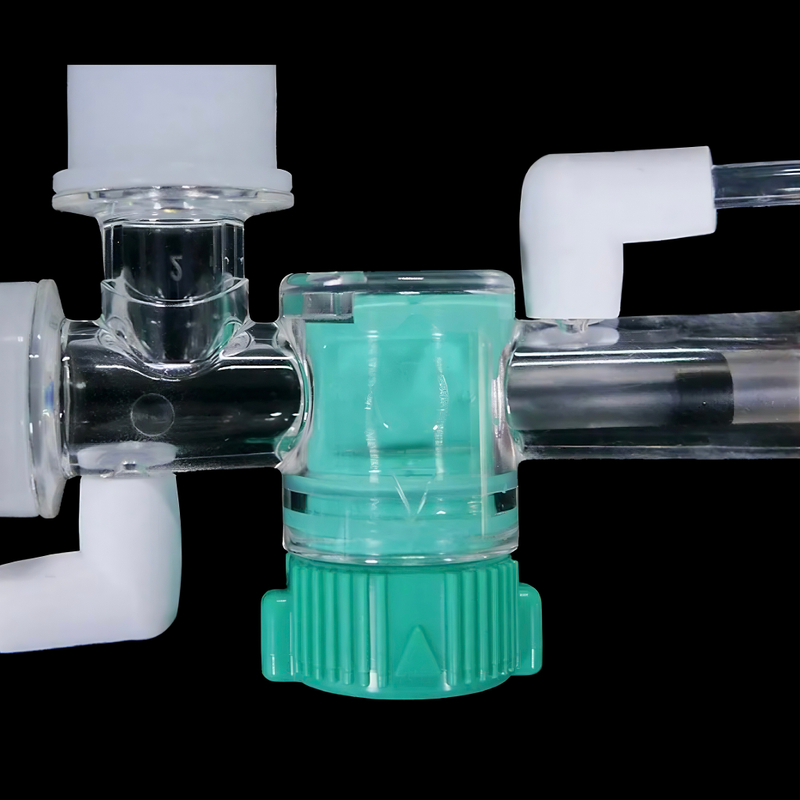

-Irrigation Port with Non-Return Valve
The non-return valve prevents backflow leakage during washing and aerosolized secretion contamination.
Product Data Sheet
Clour | Size | Products' Specification & Description | Tube OD | Length of Tube |
Grey | Neonatal/24H | "Y" Endotracheal Tube Adapter (2mm, 2.5mm, 3.0mm) | 5Fr (1.7mm) | 300mm |
Light Green | Neonatal/24H | "Y" Endotracheal Tube Adapter (2.5mm,3mm,3.5mm) | 6Fr (1.95mm) | 300mm |
Ivory | Pediatric/24H | "Y" Endotracheal Tube Adapter (2.5mm, 3mm, 3.5mm) | 7Fr (2.3mm) | 300mm |
Light Blue | Pediatric/24H | "Y" Endotracheal Tube Adapter (3mm, 3.5mm, 4mm) | 8Fr (2.7mm) | 300mm |
Black | Pediatric & Child/24H | "Y" Endotracheal Tube Adapter (4.5mm, 5mm, 5.5mm) | 10Fr (3.35mm) | 400mm |
White | Big Child/24H | "Y" Endotracheal Tube Adapter (5.5mm, 6mm, 6.5mm) | 12Fr (4.05mm) | 400mm |
